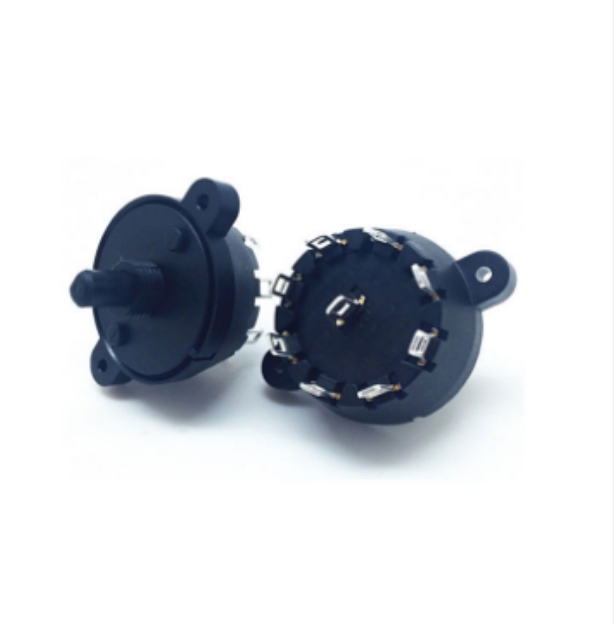

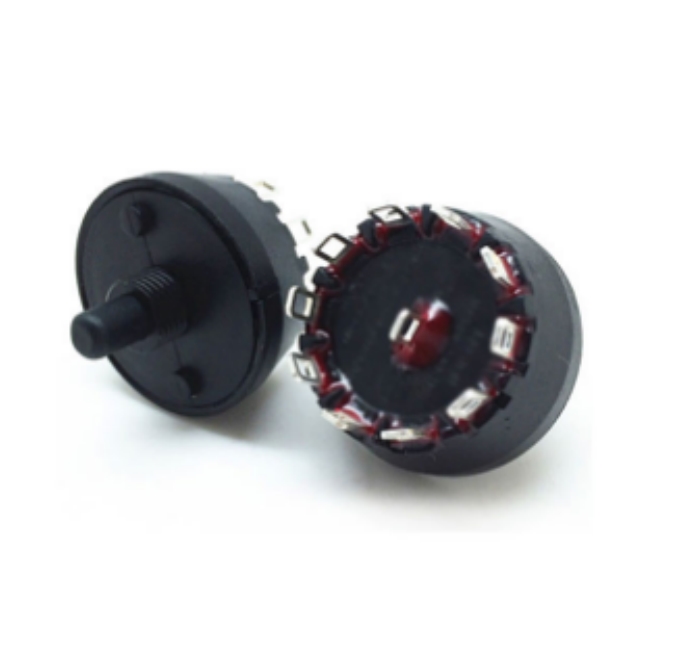

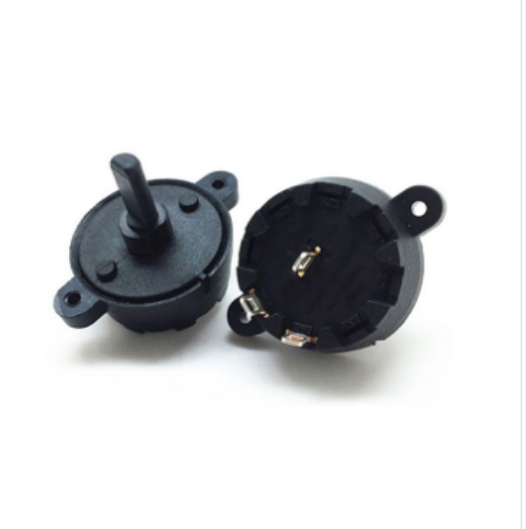

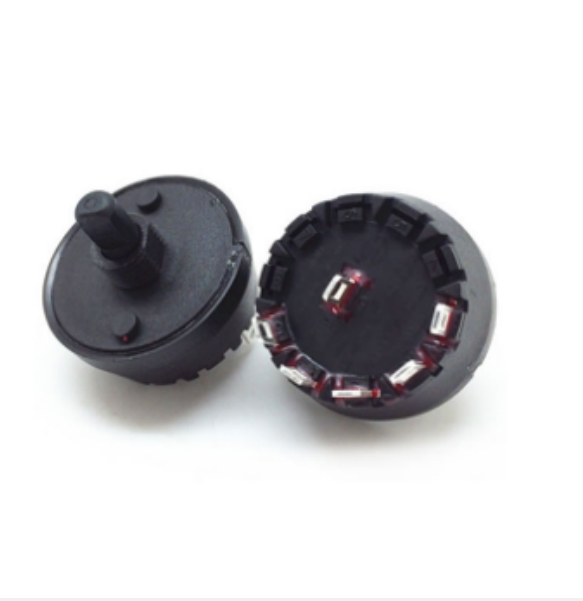

12A Rotary Power switches
Rotary Switch Rotary Switches up to 10 positions Yeswitch CR01 series Rotary Switches up to 10 positions, 36º & 45º of rotation angle, D-shape Actuator, Knobs Available. The Rotary Switches Up To 12A, 250VAC, and the optional rotation angle at 36º & 45º , 01~10 positions. Our MFR01 series rotary power switch knobs available fitting D-shape flat. 12(3)A 250V~T125 (UL, CUL) Contact Resistance: 30mΩMax. Insulation Resistance: DC 500V 100M ΩMin. Dielectric strength : 1000VAC for 1 minute Electrical life: 10,000 cycles Operation Force: 500±200gf Actuator: PBT+30% GF / UL 94V-0 Base: PA66+30% GF / UL 94V-0 Rotation angle: 36º, 10 positions without momentary function , 36º, 7 positions with momentary function Sutible for a small household appliances of fruit juice machine, mixer, air purifier, etc.…
