1Wan 4Lan 802.11b/g/n 300Mbps Wireless Stamp Hole Module

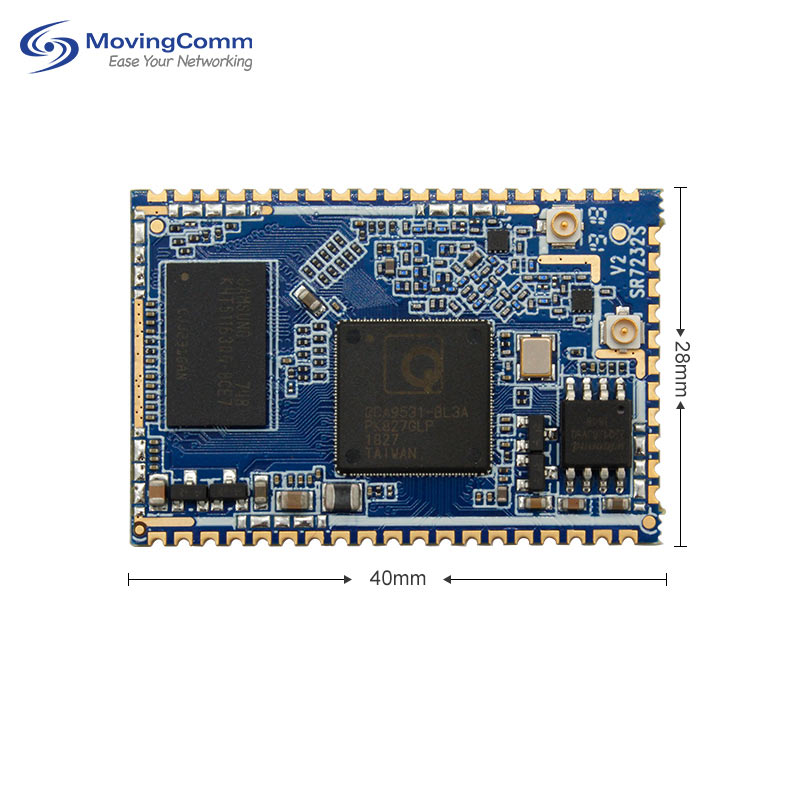

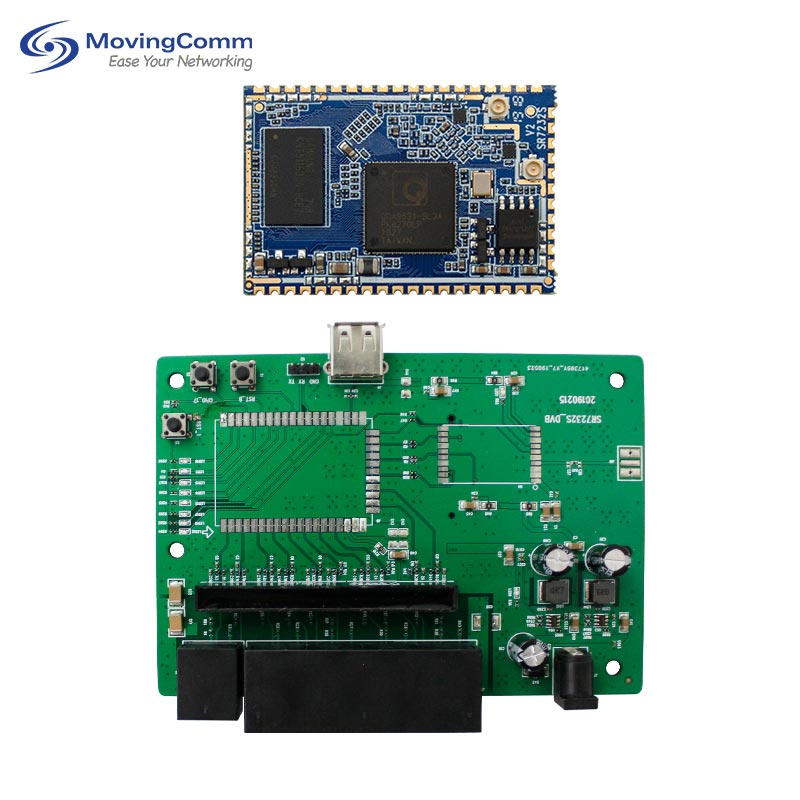

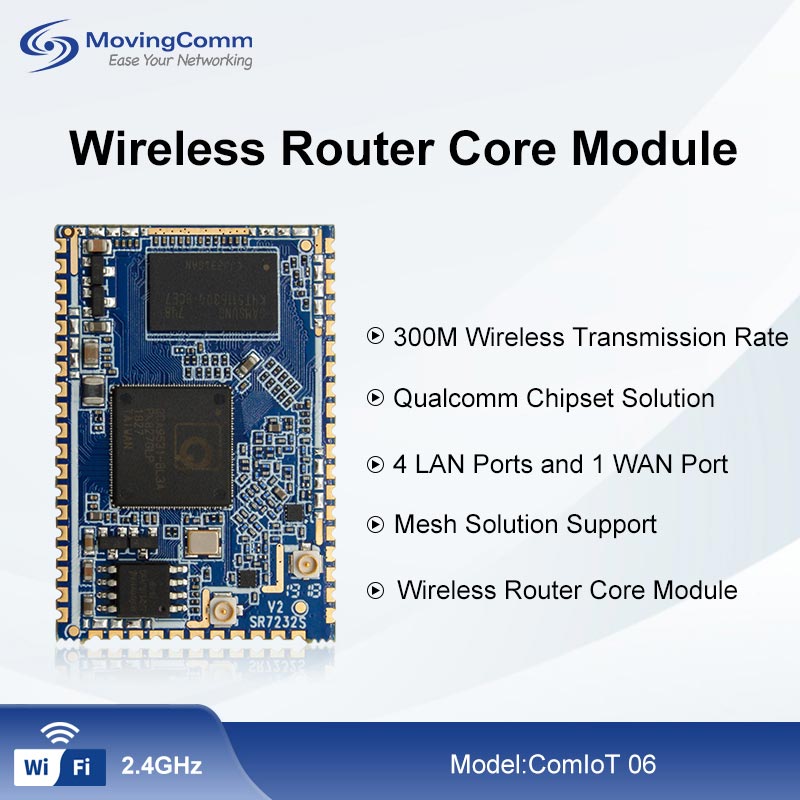

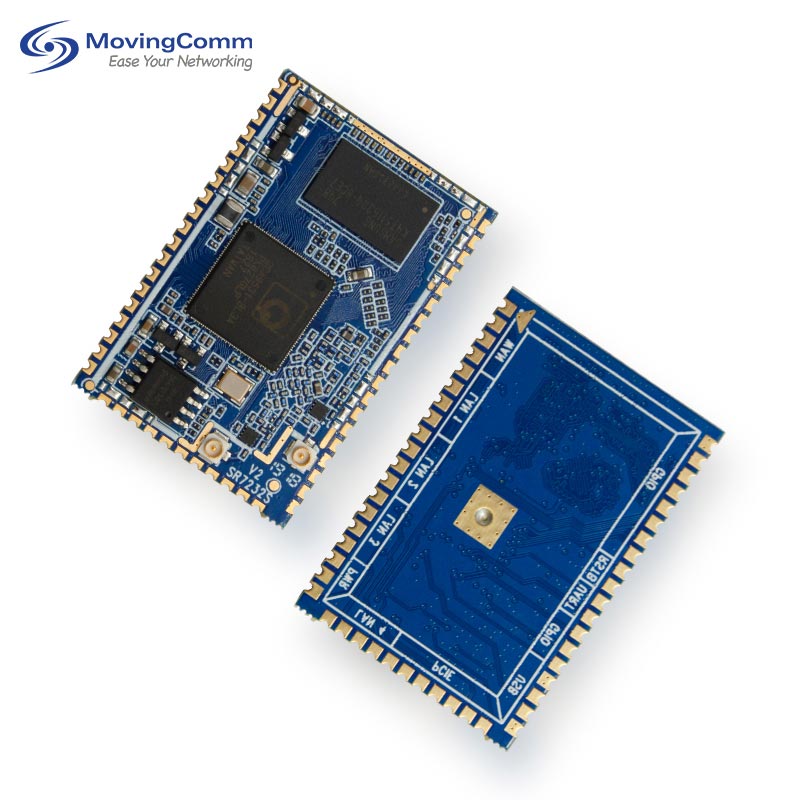

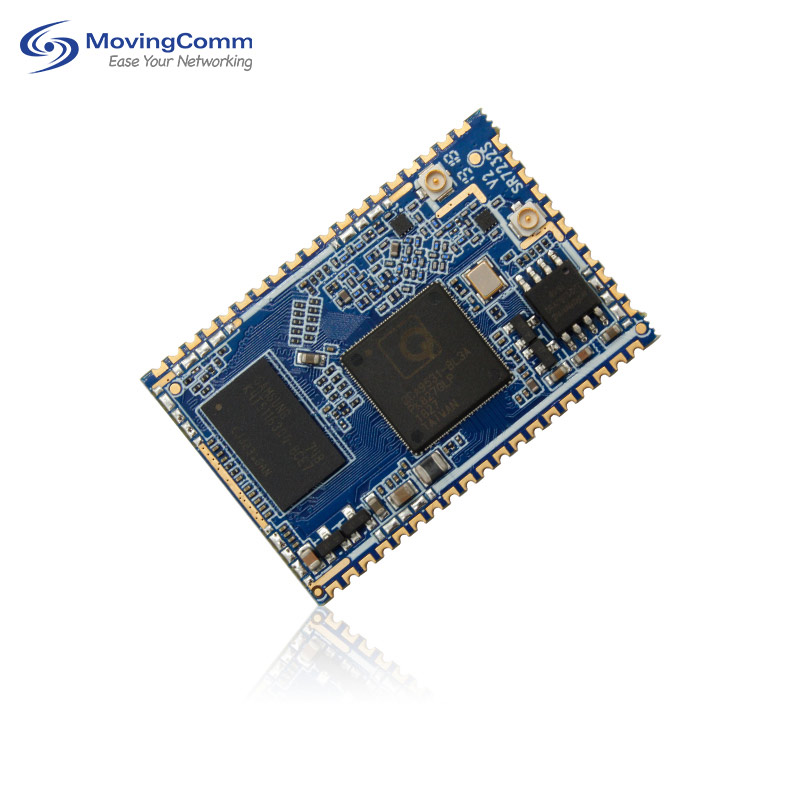

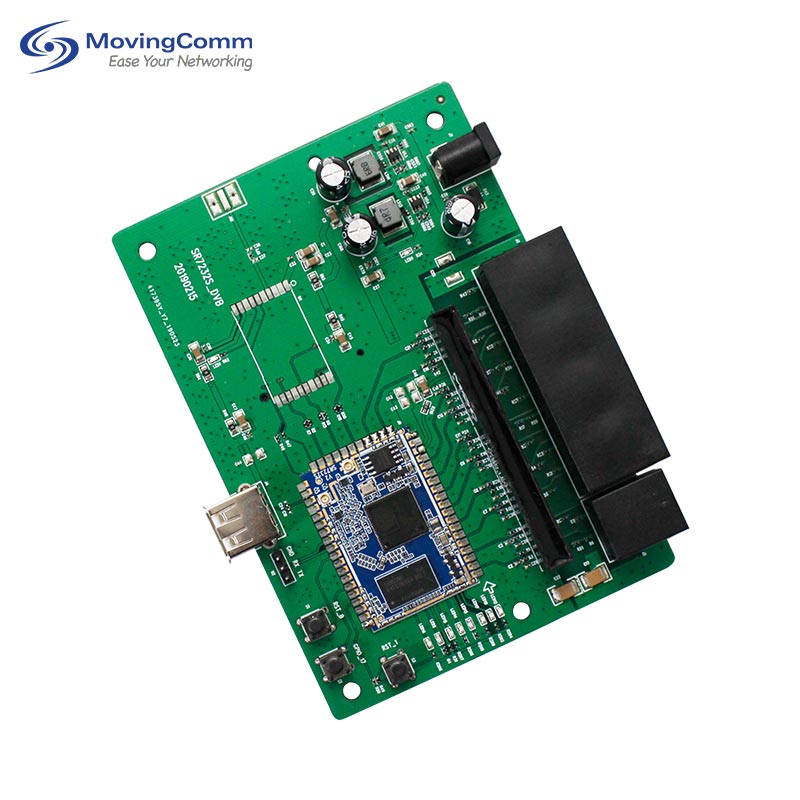

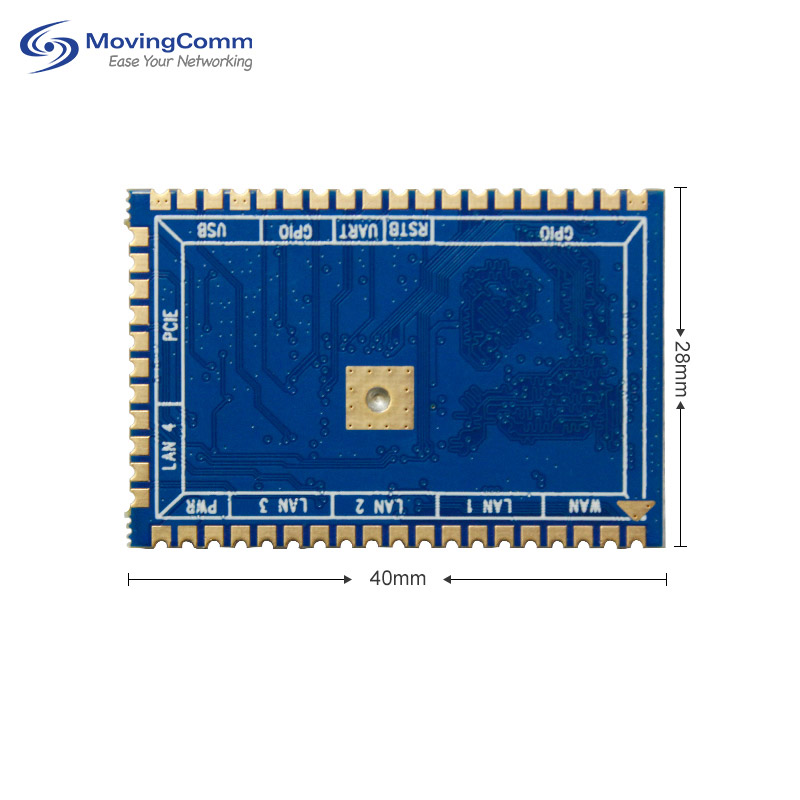

  General Description The ComIoT 06 wireless router module is a complete small form factor 802.11 b/g/n Wi-Fi solution that optimized for low-cost, low power, highly integrated AP or consumer electronic devices. This 2.4G router module is also a highly integrated small 802.11 b/g/ n Wi-Fi gateway module. ComIoT-06 module integrates Wi-Fi function, network port, serial port, USB and routing system in one package. Only a few simple external circuits are required to apply the module perfectly. This router core board module is based on a single chip QCA9531, which integrates 802.11n 2x2 MAC/BB/radio with internal PA and LNA. It supports 802.11n wireless standard operation up to 150Mbps in the 20MHz channel bandwidth and 300Mbps in the 40MHz…
