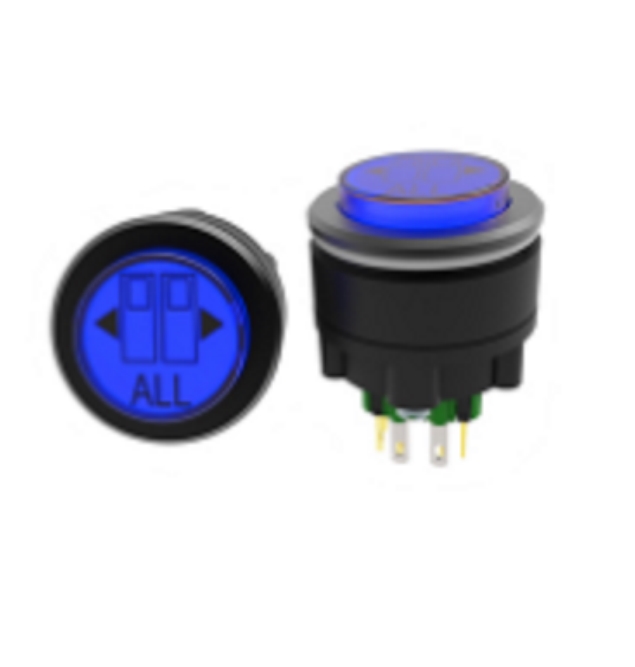

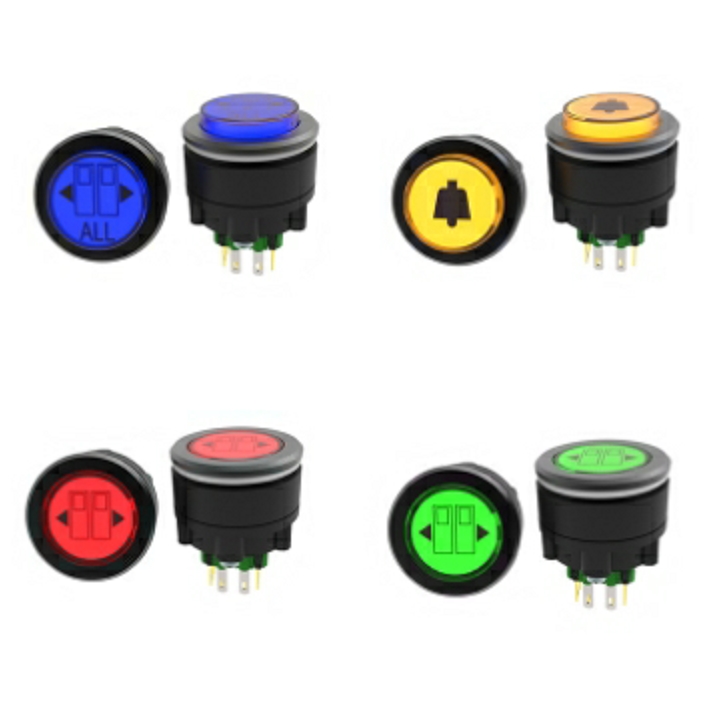

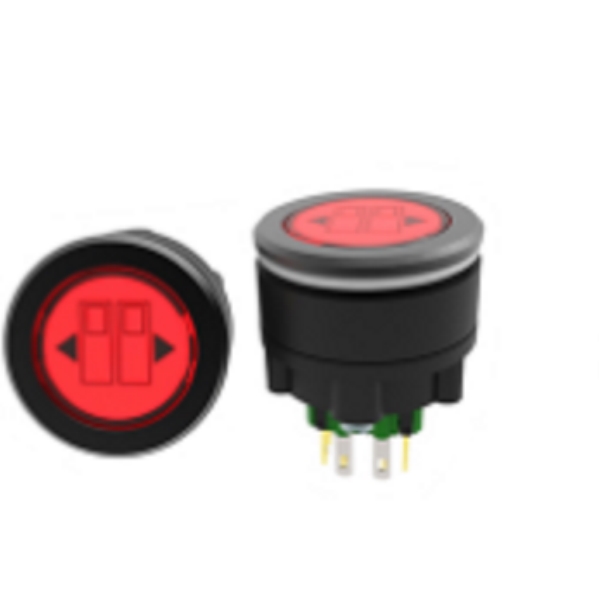

30mm ON-OFF Illuminated Metal Pushbutton Switch
IP67 30MM Metal Pushbutton Switch Yeswitch PBM-30 series automative button switch is IP67 waterproof rating which passing high and low temperature. The PMB 30 series Metal Pushbutton Switch has anti-freeze function and anti-vibration structure with various LED opition. The IP67 Metal pushbutton is suitable for a variety of vehicle application environment. The Metal pushbuton switch has already passed CQC/CE/SGS/REACH/TUV certificate. SPECIFICATIONS Panel Thickness: Ø30.20mm Contact Rating: lth 5A/250VAC resistive load 3A/250VAC Mechanical Life: Momentary 200,000 cycles Self-lock 100,000 cycles Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 3.2mm Operation Pressure: 1Pole 2.5±1N / 2Poles 3.5±1N Contact Resistance: 50 mΩ max. @1A 12VDC (ini…
