Auto Roll Splicer Machine

114
Website:

Auto Roll Splicer Machine

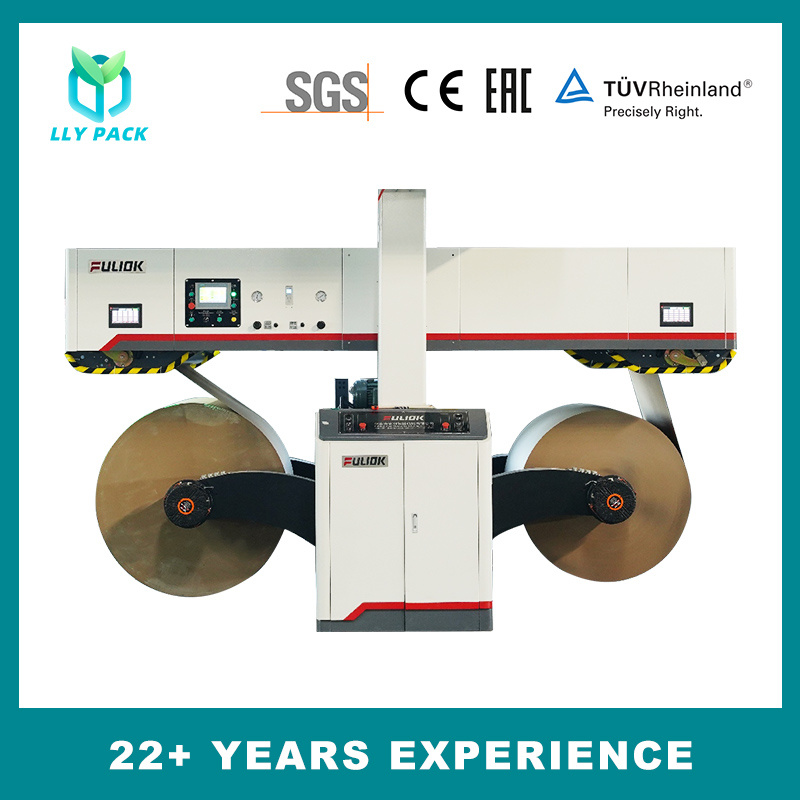

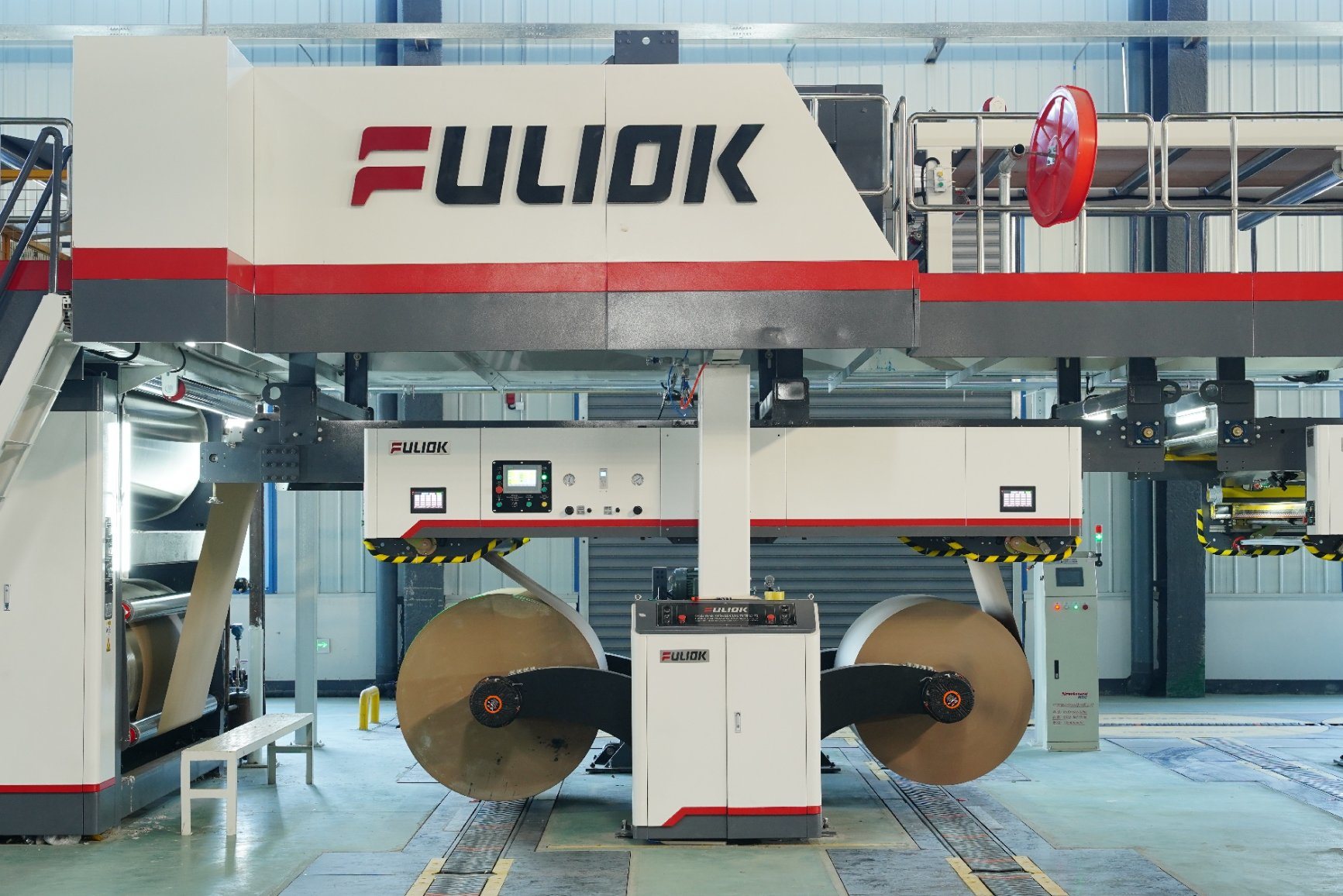

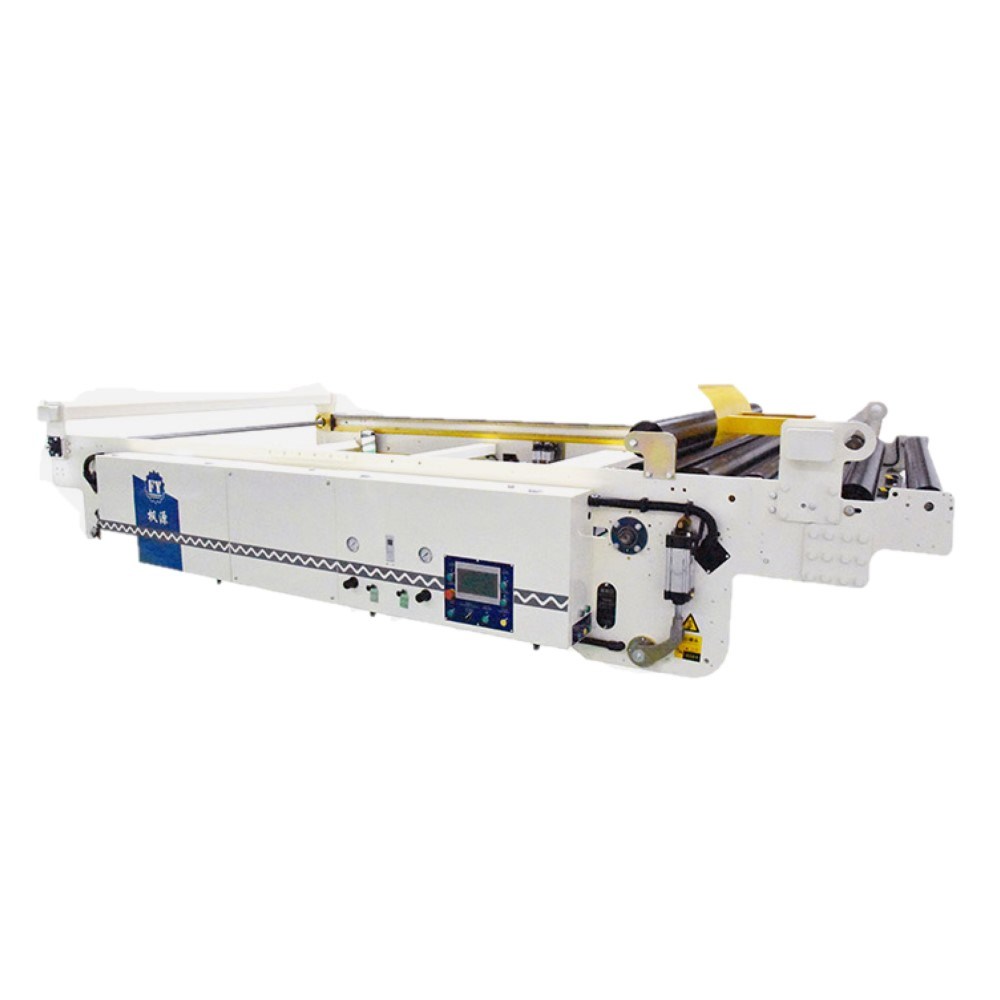

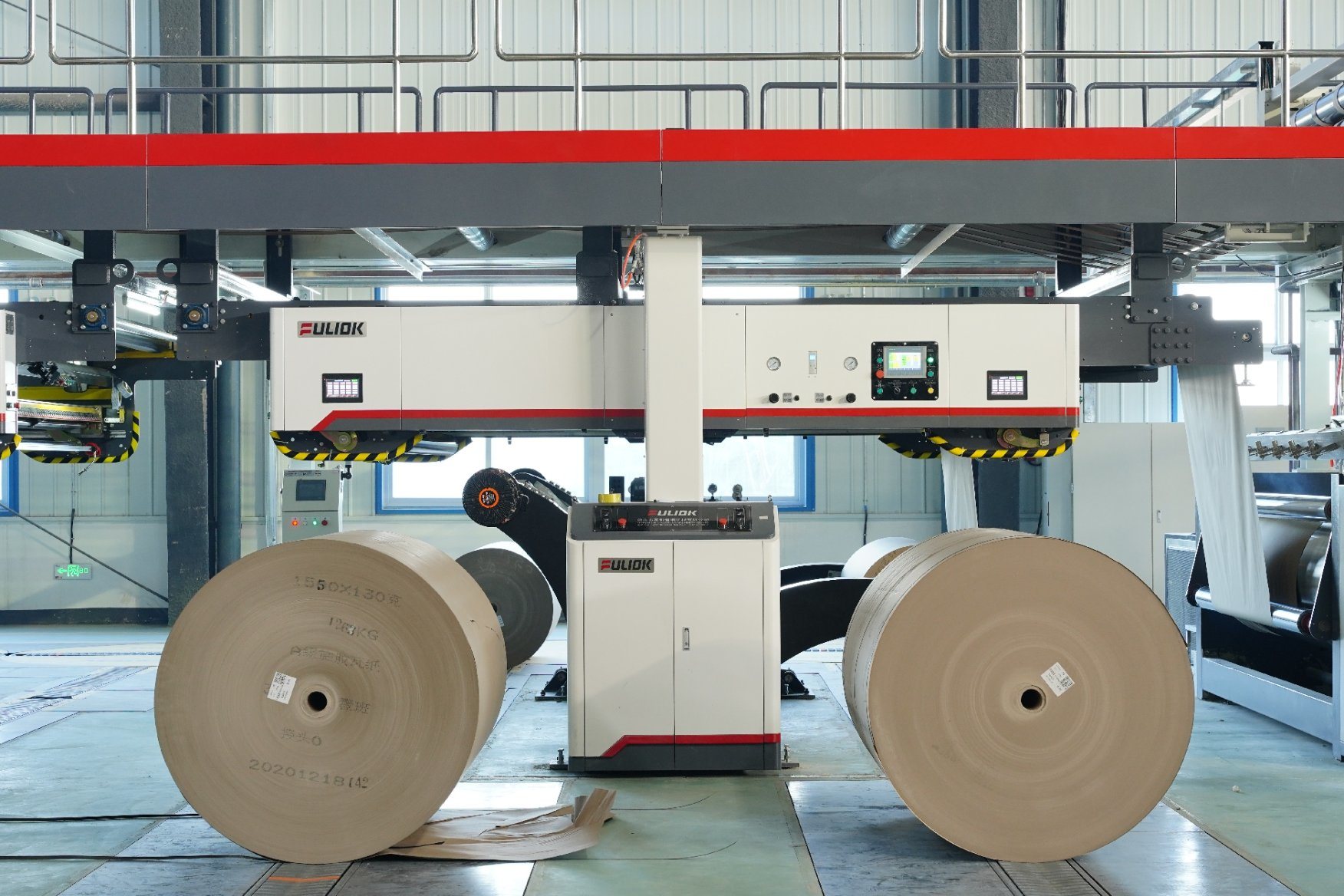

  Product Description      ROLL TO ROLL NON-STOP SPLICING Fly300-400 Auto Splicer for Corrugated Line,Printer,Laminating Machine,Paper Reel Cutter ΦTENSION CLOSED-LOOP CONTROL TO AVOID PAPER BREAK ΦEASY TO MATCH THE PRESENT CORRUGATED LINE ΦWITH TOUCH SCREEN TO MONITORING THE DATA .EASY AND CLEAR OPERATION Φ1.5 SECOND TO CHANGE PAPER ΦIMPORTED SPARE PARTS TO ENSURE THE LOW FAILURE RATE Design speed: Model 300-280 m/min(Flute liner)250m/min(Top liner) Model 400-380 m/min(Flute liner)250m/min(Top liner) Paper Connection: overlap connecting Design width: the maximum paper width can reach 2550mm Weight of the original paper: 50g/m2~350g/m2 Paper reaction completion time: about 1 second Gas source: a minimum of 0.6MPa dry clean air source Power demand: power supply:380V, 50Hz, 20A control power:12V,24V Paper frame brake: pneumatic brake/ magnetic powder brake  …
