Copper Condenser Coil with Aluminum Coated Fins

155

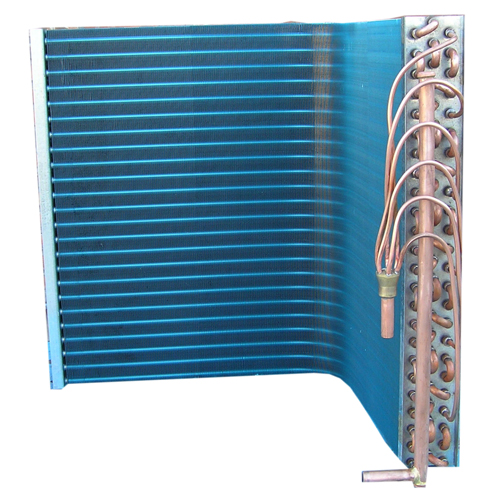

Copper Condenser Coil with Aluminum Coated Fins

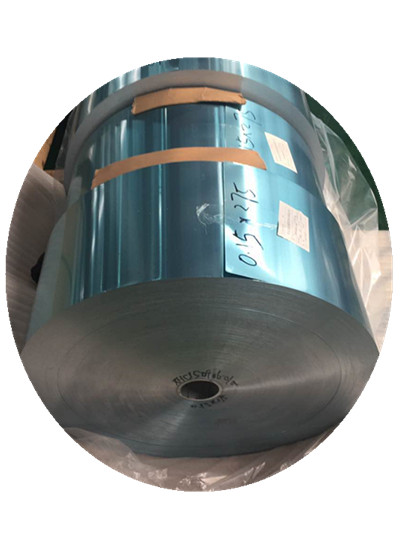

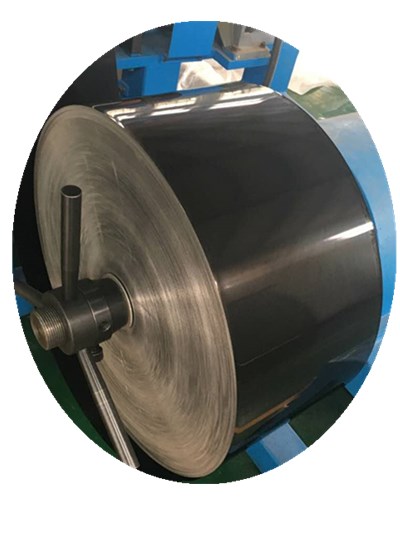

Condenser Coils are made for heat rejection, such as the heat absorbed by an evaporator coil, and they typically operate under higher internal pressures. Coils made with 3/8-inch tubing are rated for use at 600 PSIG and 300F while coils made from 1/2- or 5/8-inch tubing are rated for 300 PSIG and 300F. Condenser coil fins may be normal aluminum foil, also pre-coated aluminum foil or copper foil. Better-tech can supply Black Epoxy Resin Anticorrosive or Blue Hydrophilic pre-coated aluminum fins to meet condensers to be applied in different conditions.
