fuel low pressure filter for hydraulic system

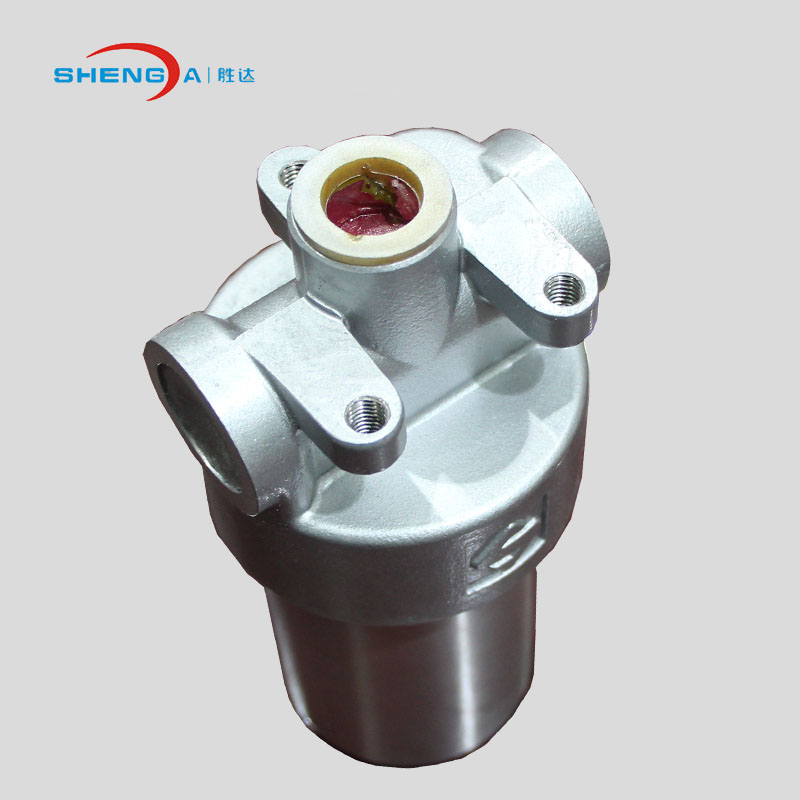

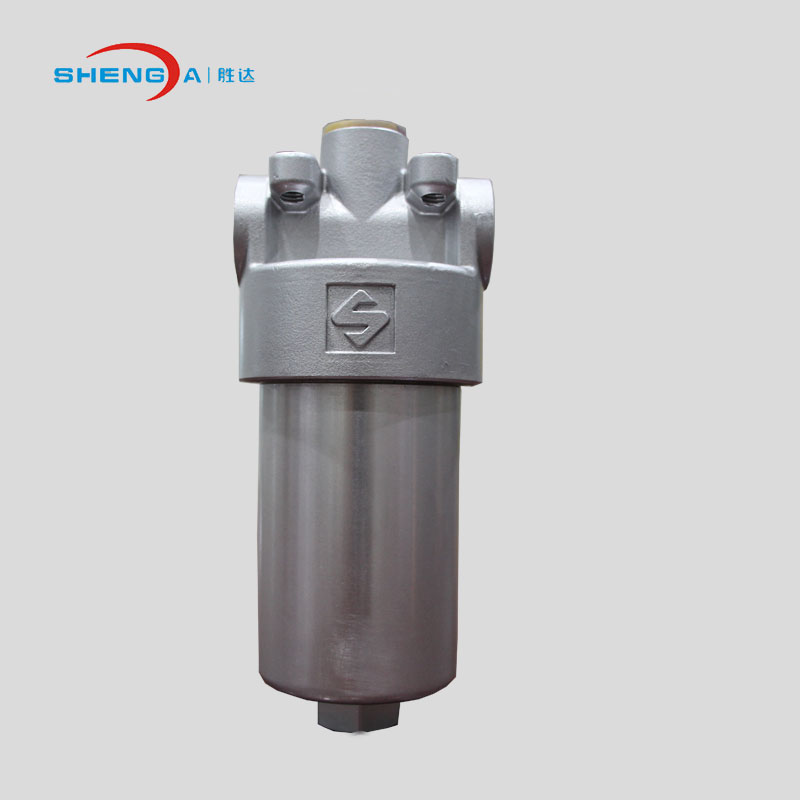

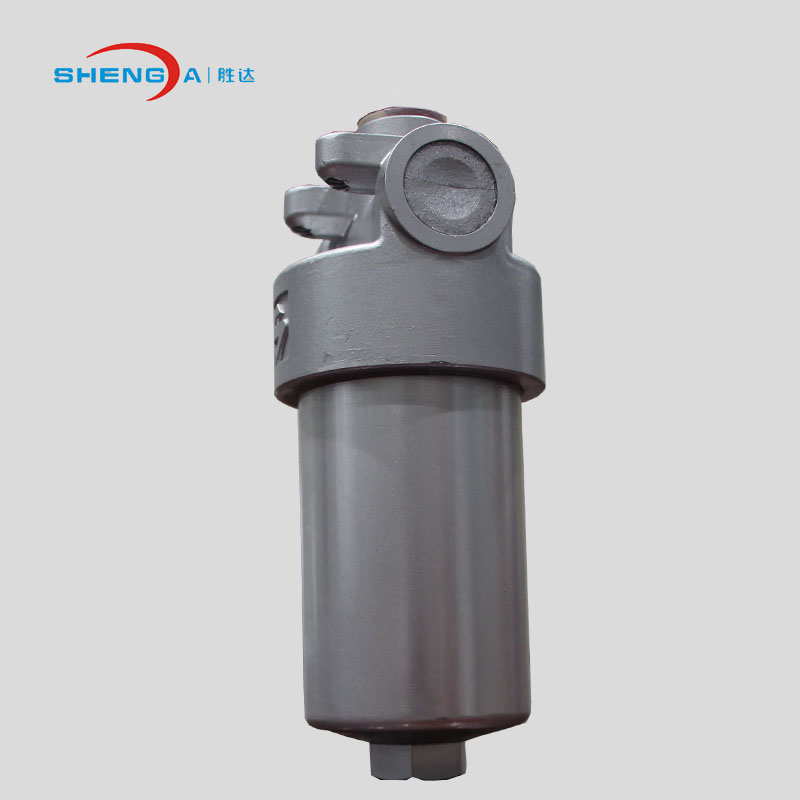

Low Pressure Filter(SDLPF) ---up to 280 L/min ---up to 50 bar ---aluminum 1.    Introduction Filter Housing Construction: Low Pressure Filter consists of a filter head and a screw - in filter bowl(SDLPF 35, 55) or the filter bowl is fixed to the filter head with a retaining nut( SDLPF 160, 240, 280) Filter Element Max. Allowable D.P.:   BN/HC– 20 bar      BH/HC – 210 bar        W/HC – 20 bar 2.    Description Mounting                 As inline filter Flow       Inlet: side           Outlet: opposite side Temperature range - 30 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa=5bar – 10% (others on request) Cracking pressure of bypass valve △ Po=6 b…
