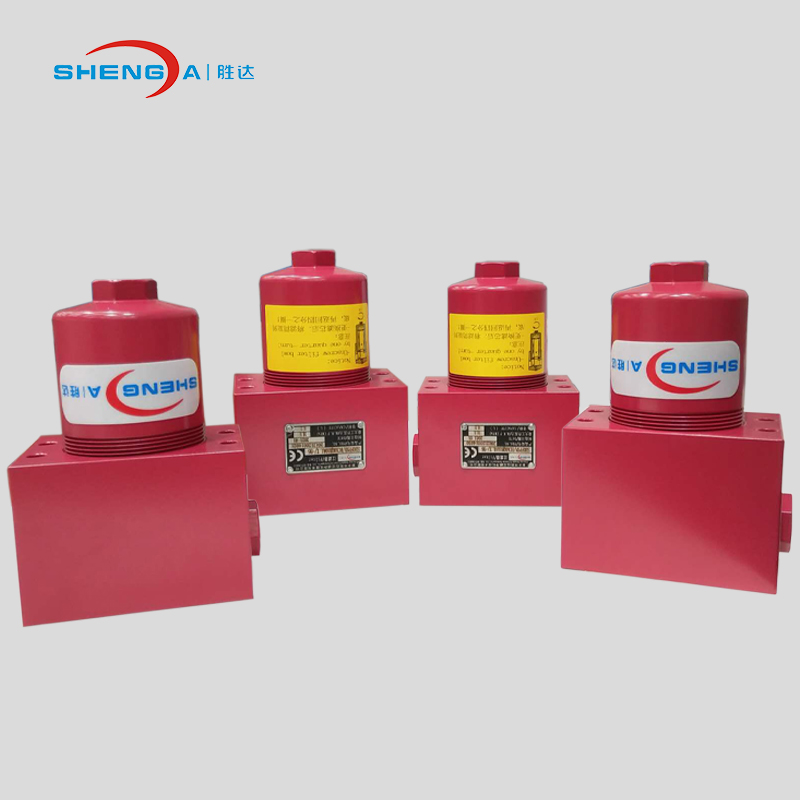

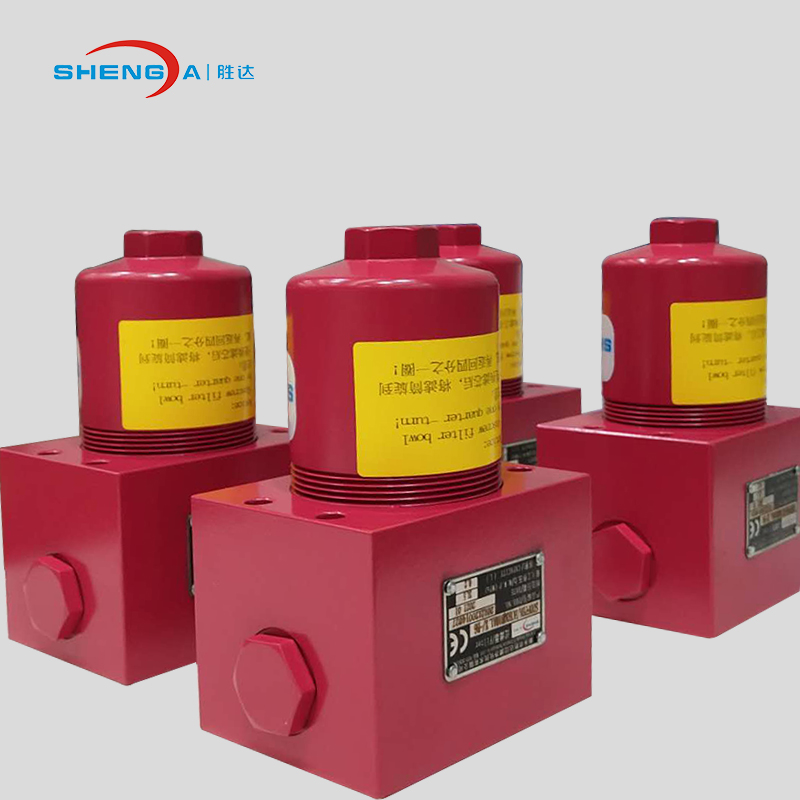

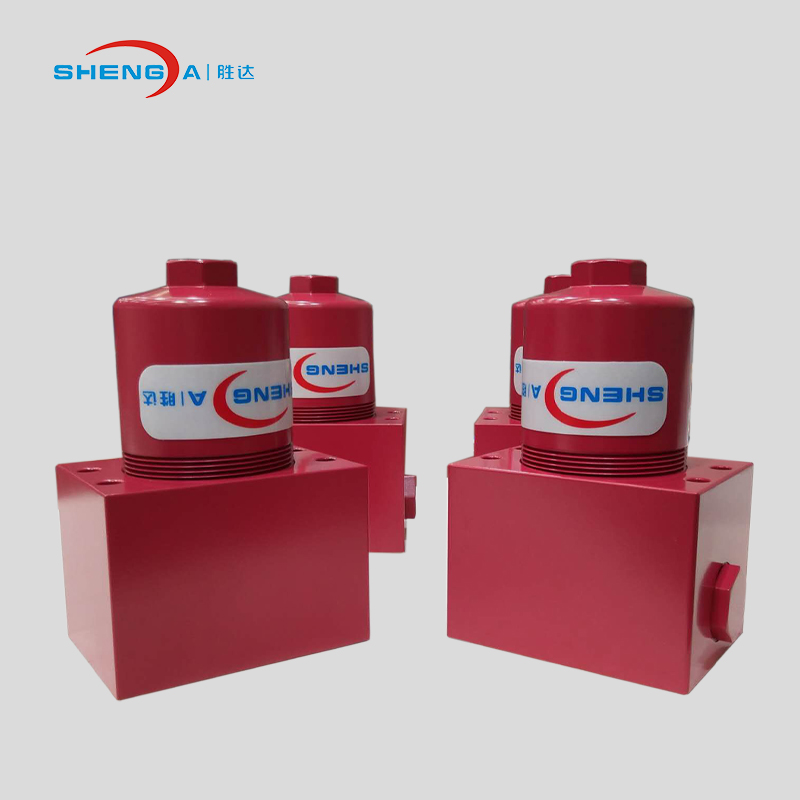

High Pressure Oil Filter for Manifold Mounting

121

High Pressure Oil Filter for Manifold Mounting

Pressure Oil Filter (SDDFP) ----up to 660 L/min ---up to 315bar ---material:EN-GJS400-15/steel 1. Technical Specifications 1.1 Filter Housing Construction The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. Standard equipment: *  connection for a clogging indicator *  two-piece bowl for DFP/F 990 and above (optional for DFP 660 and above) *  drain screw with pressure relief (standard for DFP/F 330 and above) 1.2   Filter Elements Max. Allowable D.P.: BN/HC:20bar   W/HC: 20bar    V: 210bar    BH/HC: 210bar 2.    Description Mounting                as pressure oil filter Temperature range    - 10 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa= 5bar…
