Insulating Sleeves on Plug Pins Abnormal Heat Resistance Flammability Test Machine

32

Insulating Sleeves on Plug Pins Abnormal Heat Resistance Flammability Test Machine

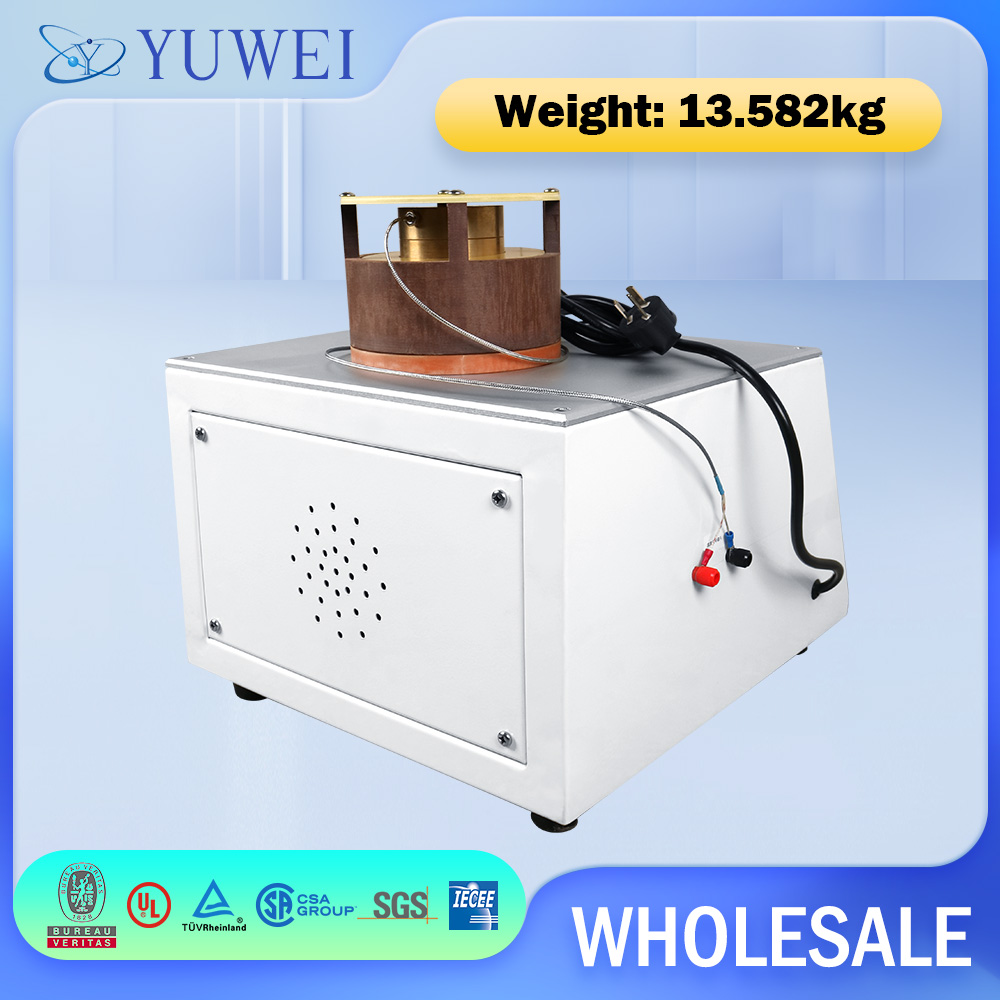

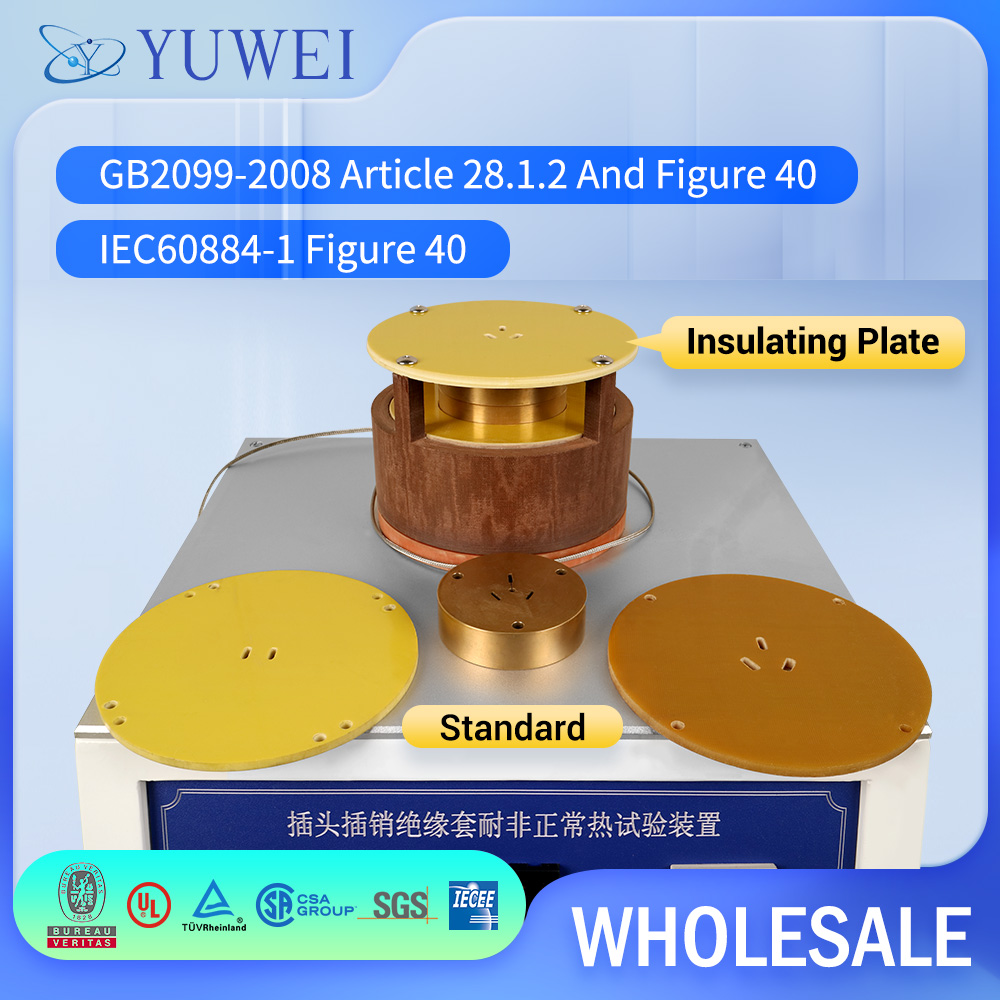

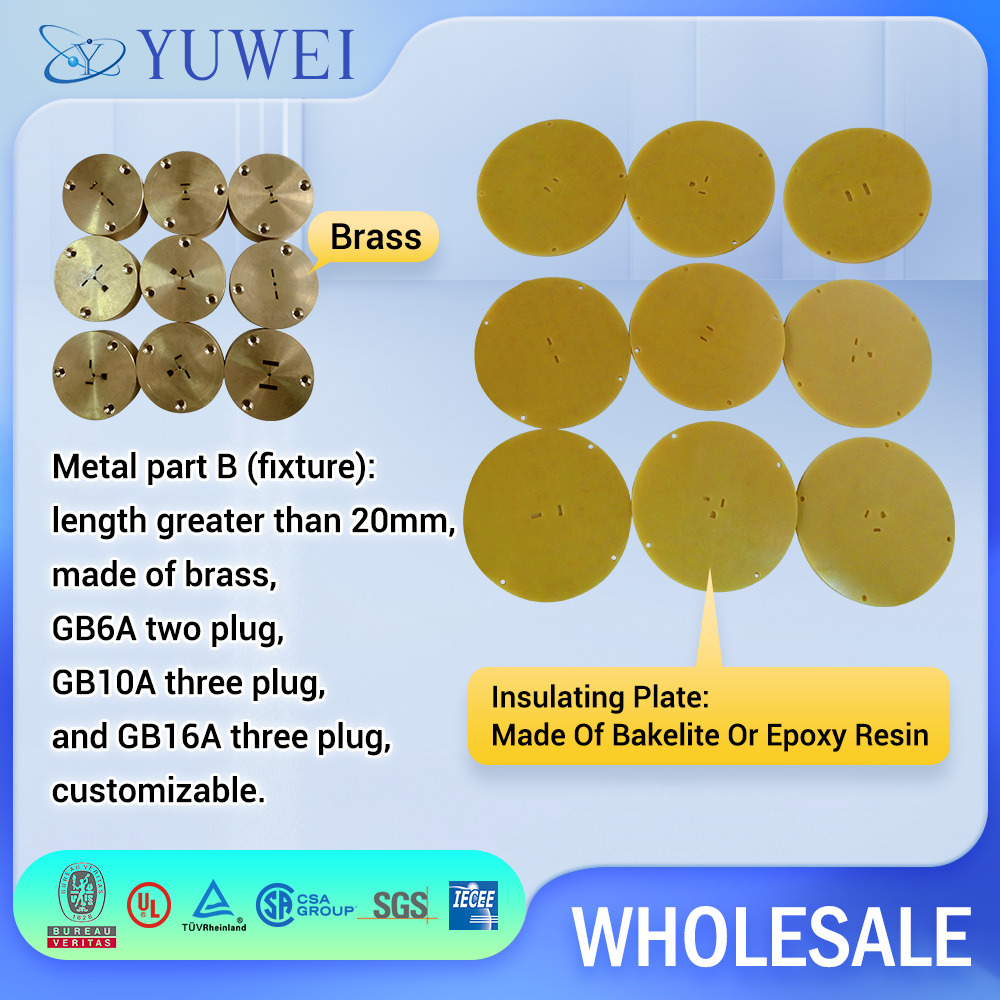

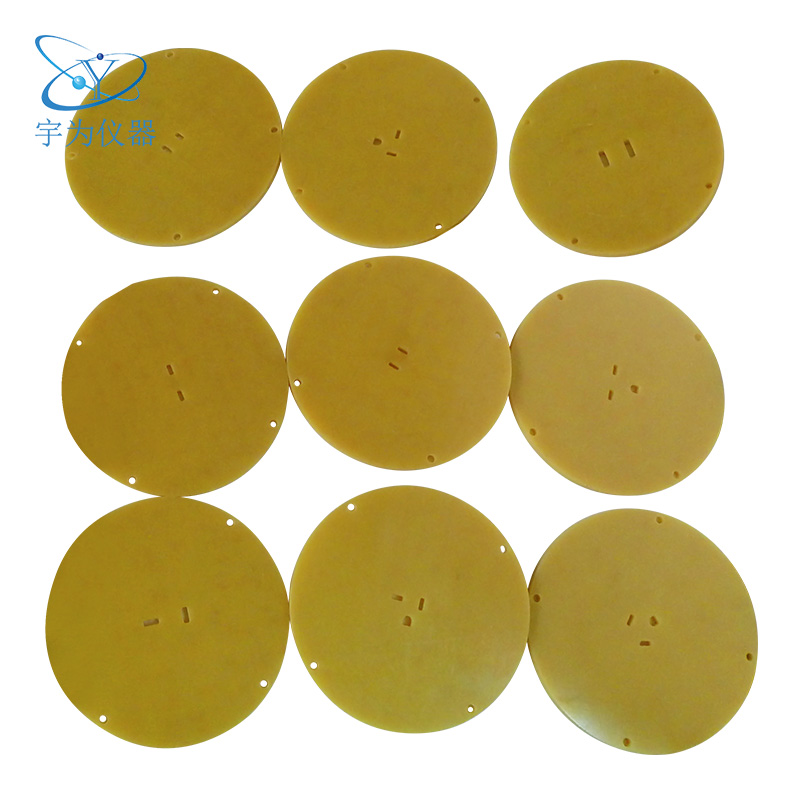

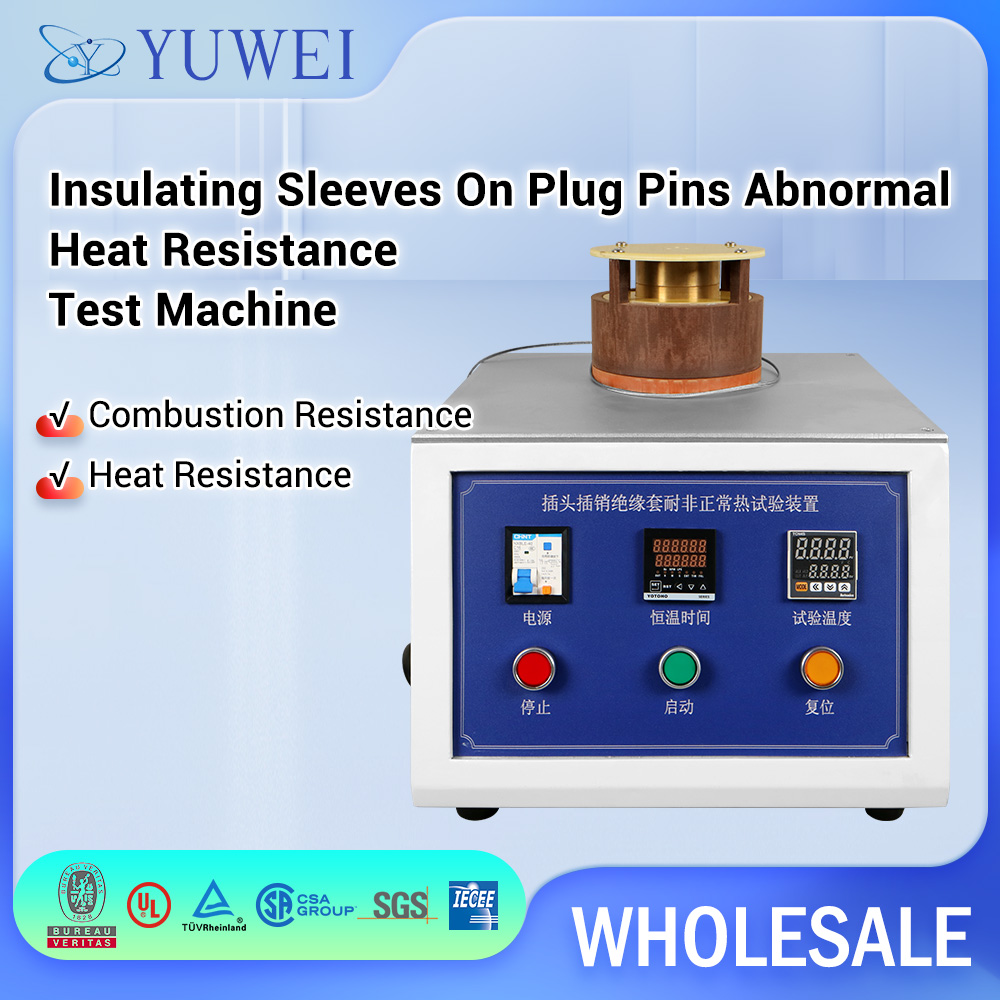

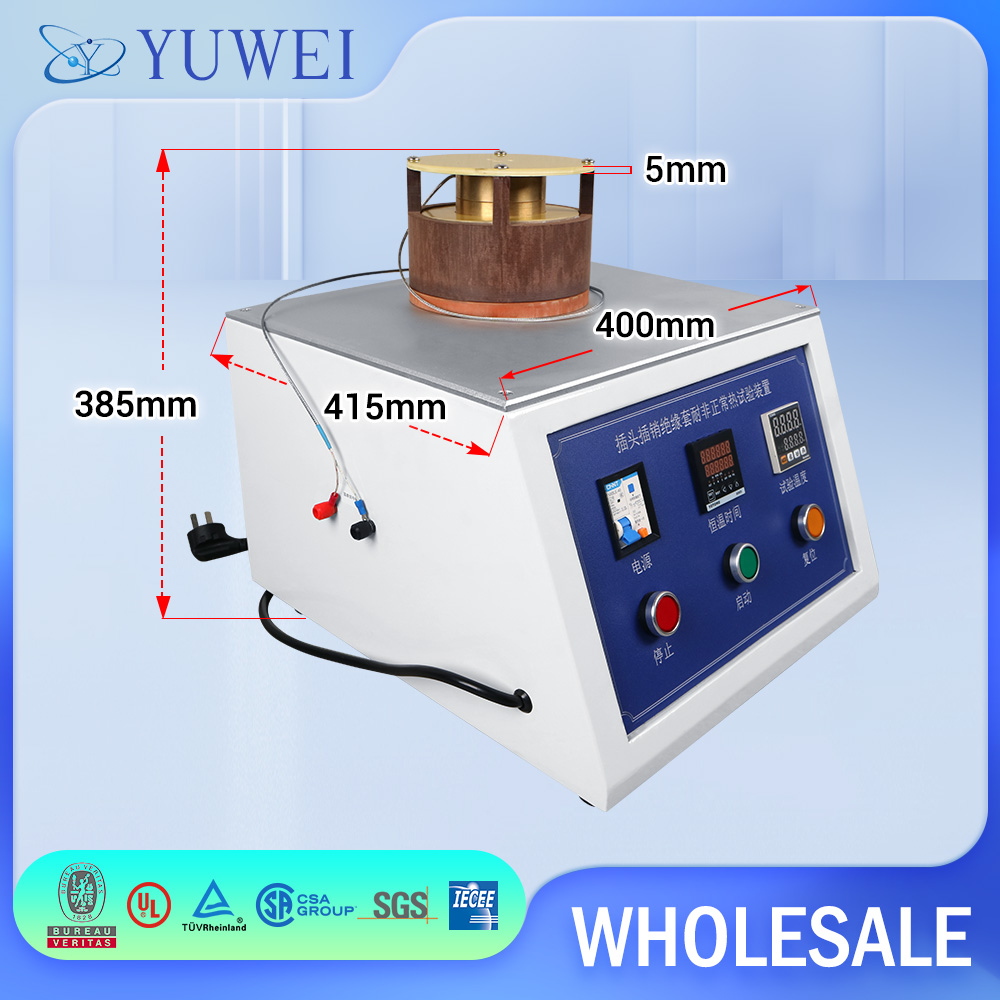

 Insulating Sleeves on Plug Pins Abnormal Heat Resistance Test Machine YW-1108 Standards: GB2099-2008 Article 28.1.2 and Figure 40  IEC60884-1 Figure 40 Application: Abnormal temperature heat resistance and flammability tests on plugs Pins with insulated sleeves. Insulation components simulating potential damage to the safety performance of plug-in devices due to electrical thermal stress and degradation. Test on: Plug and pin insulation sleeve Functionality : According to the standard, testing for the heat resistance and combustion resistance of insulating sleeves on plug pins Note: The abnormal heat resistance test apparatus for plug pin insulation sleeves shall not undergo excessive damage when exposed to overheating and flames. Technical parameters: 1. Insulating plate: A circular flat surface with a thickness of 5mm, made of bakelite or epoxy resin, and the diameter is twice the diameter…
