Laser Sensor Measure Distance with RS232/RS485

53

Laser Sensor Measure Distance with RS232/RS485

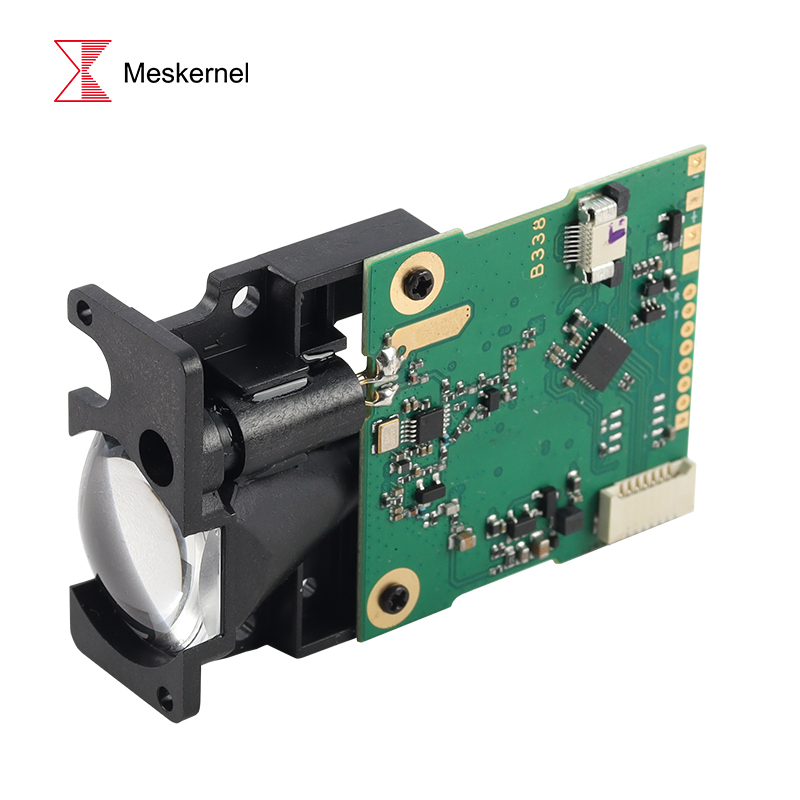

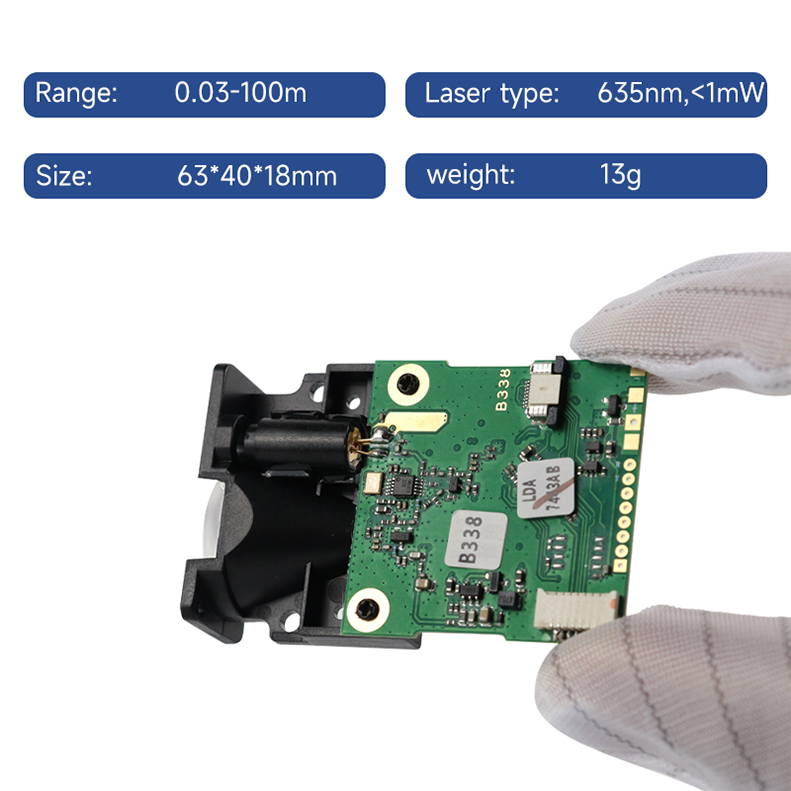

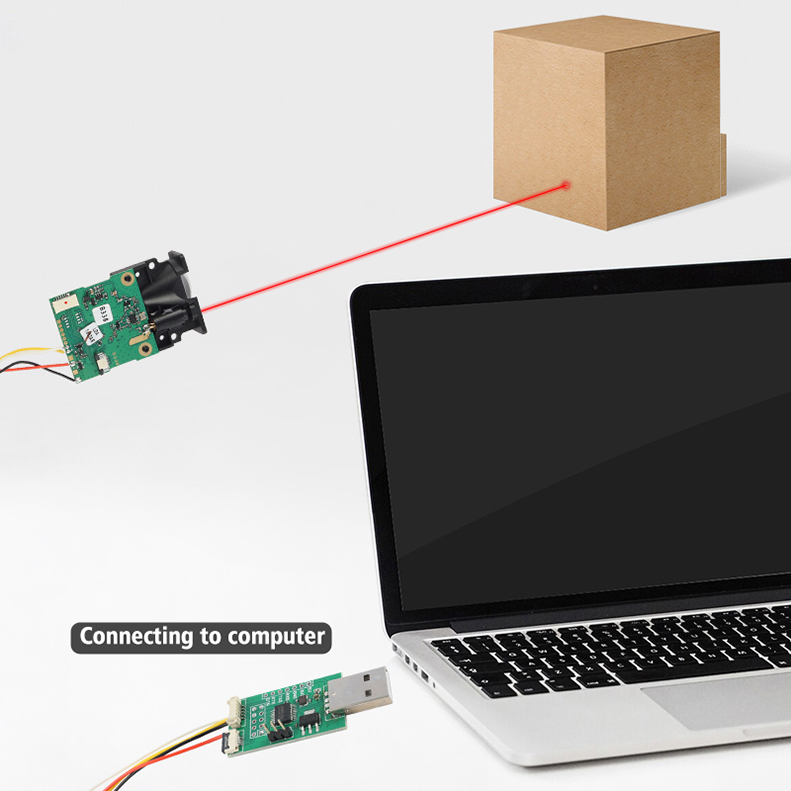

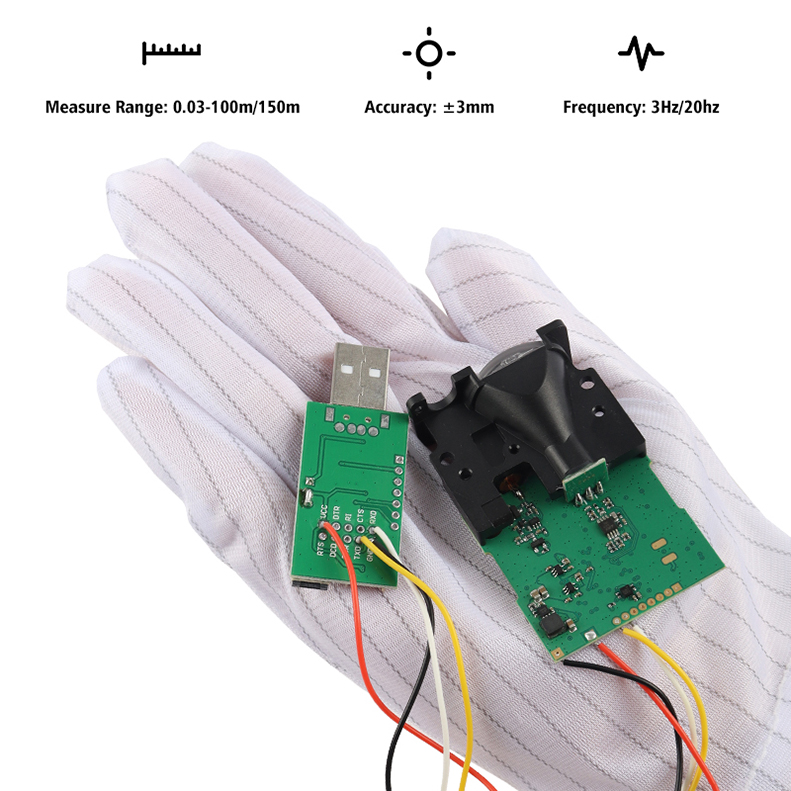

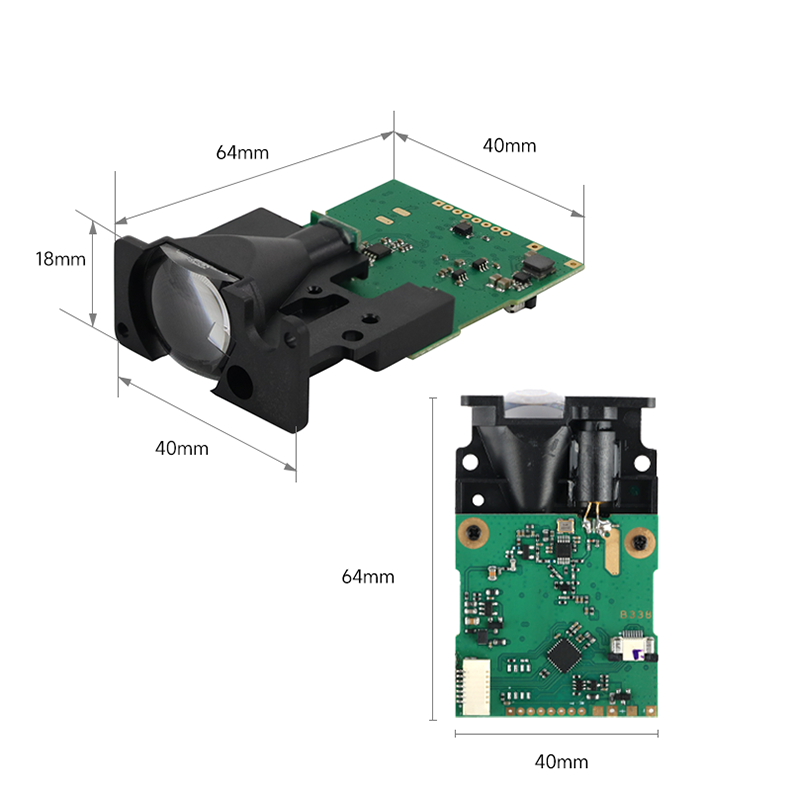

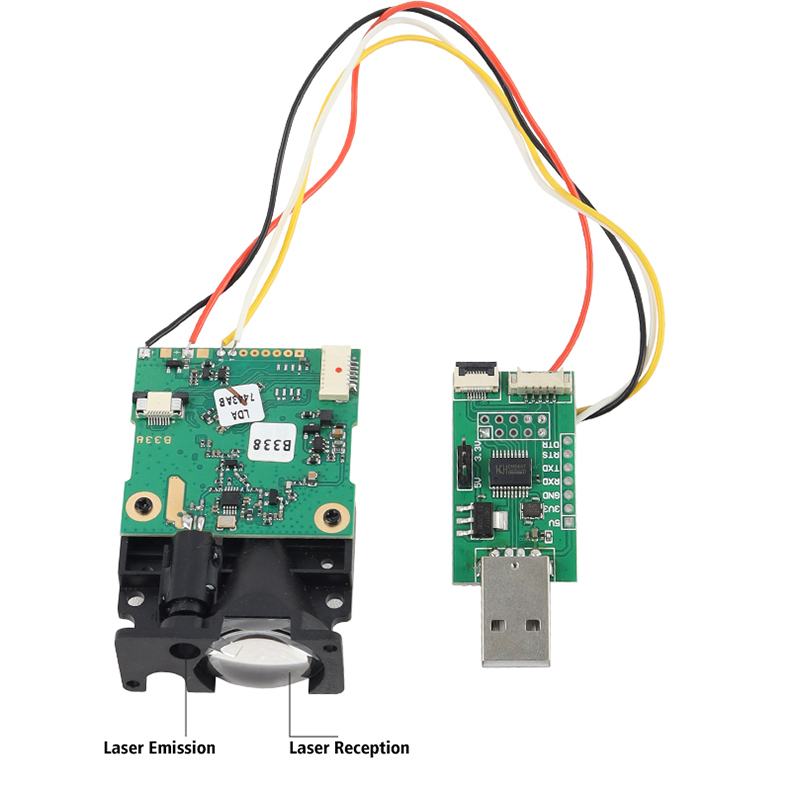

The LDL laser ranging sensor is a high-precision device that was independently developed by Chengdu Meskernel Integrated Technology Corporation. Its compact design allows OEM users to easily integrate it into systems and equipment, and its UART communication interface allows users to create and program their own applications. The sensor measures just 41*17*7 mm and weighs about 4g. Resolution ±2mm Range of measurement(indoor,90%) 0.03-150m Measuring Time ≥0.3s Laser Class Class II Laser Type 635nm, <1mW,Red visible laser Size 64*40*18mm Data interface TTL/RS232/RS485/4-20mA Weight About 13g Voltage DC 2.5~3.3V Op…
