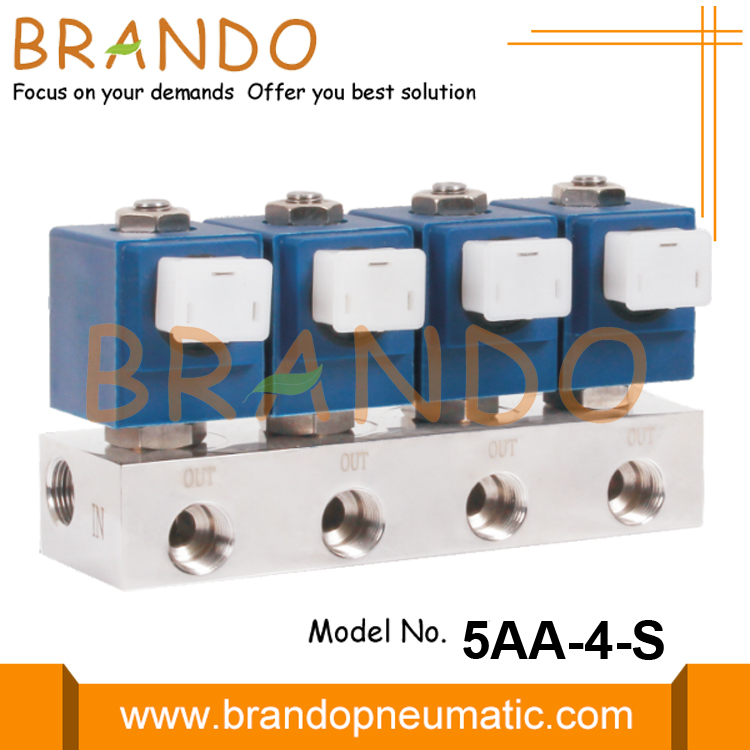

Manifold Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2''

122

Manifold Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2''

Manifold Stainless Steel Solenoid Valve 1/4'' 3/8'' 1/2'' Product Features of Manifold Solenoid Valve: 1. Working Medium: Air, Water, etc. 2. Working Pressure Range: 0 to 1.0 MPa (See the parameter table below for details) 3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃), PTFE (-60 to +200℃) 4. Port Size: 1/4'', 3/8'', 1/2'' 5. Orifice Size: 6mm 6. Body Material: Brass, Stainless Steel 7. Seal Material: NBR, EPDM, FKM, PTFE 8. Function: 2 Way Normally Closed, 2 Way Normally Open 9. Operation: Direct Acting 10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) Technical Data of Manifold Solenoid Valve:                             2 Way Normally Closed Model Port Size…
