Manual video measuring instrument

39

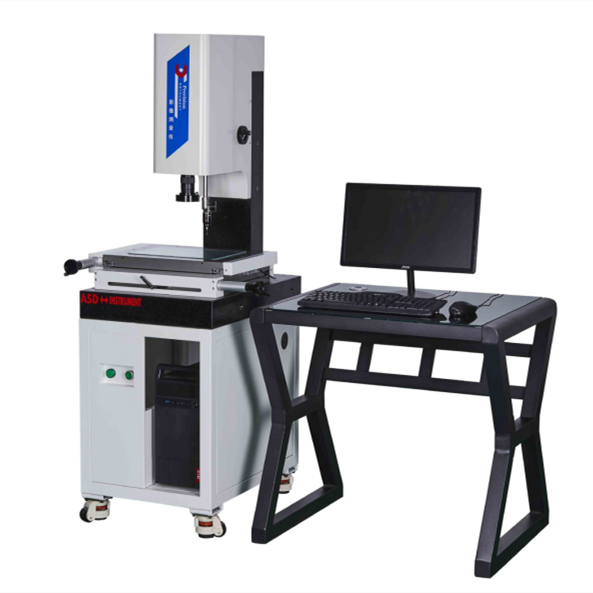

Manual video measuring instrument

Manual image measuring instrument is widely used in precision electronics, wafer technology, cutting tools, plastics, precision parts, springs, stamping parts, connectors, molds, military industry, two-dimensional counting, drawing, engineering development, hardware plastics, PCB boards, conductive rubber, powder metallurgy, screws, clock parts, mobile phones, pharmaceutical industry, optical fiber devices, automotive engineering, aerospace, universities, research institutes and other fields. Special function of full manual image measuring instrument: software controls the light source. The upper light source is a four phase lamp, and the lower light source is a straight light source, which increases the adaptability of the machine. Model Classification: Model 5040 Actual measured size  500 * 400 * 180 (mm) Measurement accuracy  (3+L/200) μ m Overall dimension (mm…
