Meskernel Cylinder Pulse Distance Sensor RS485 1500M

49

Meskernel Cylinder Pulse Distance Sensor RS485 1500M

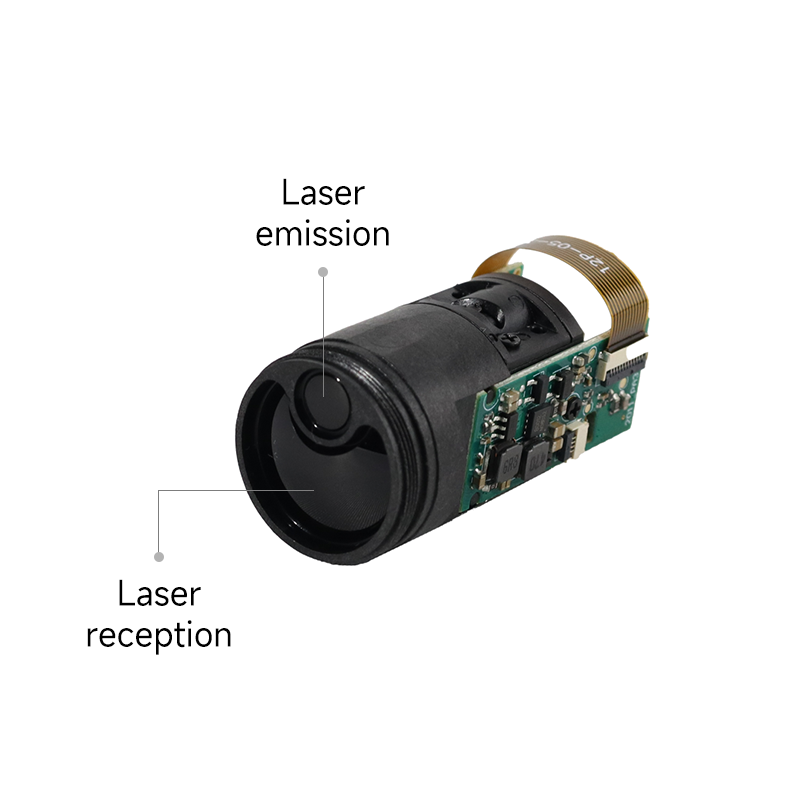

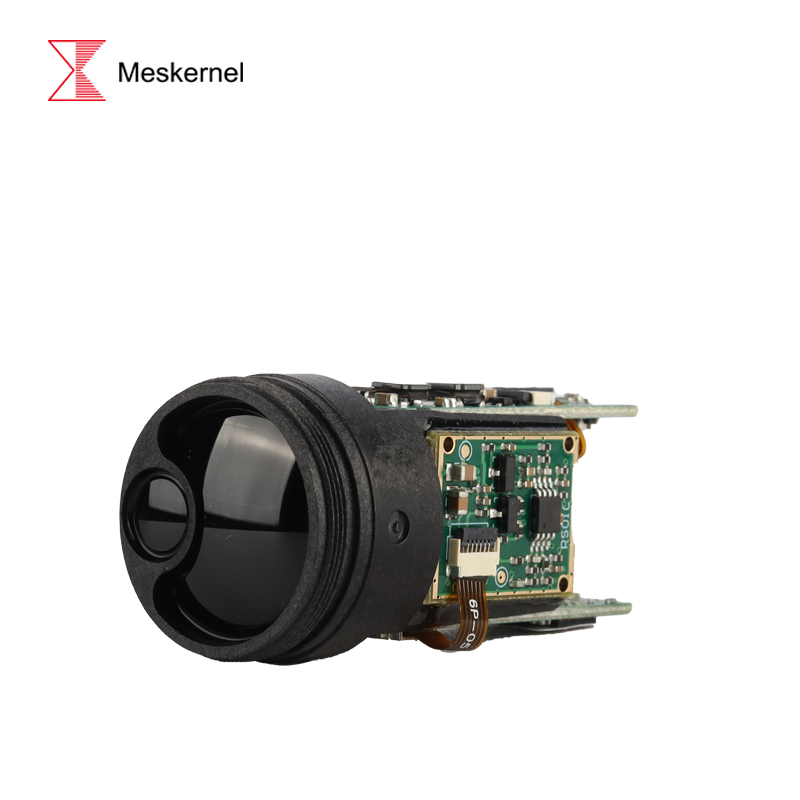

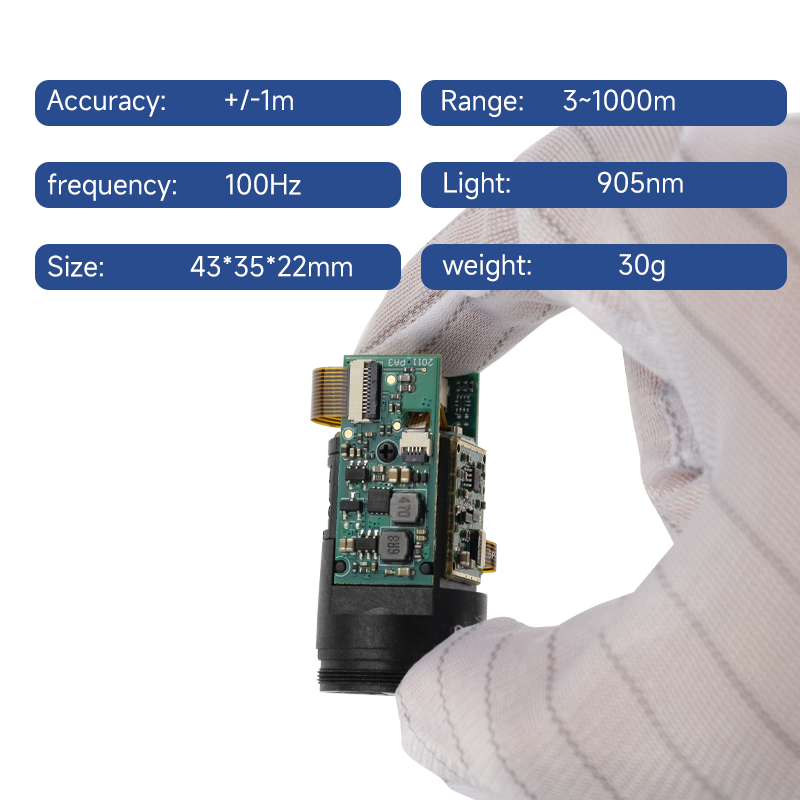

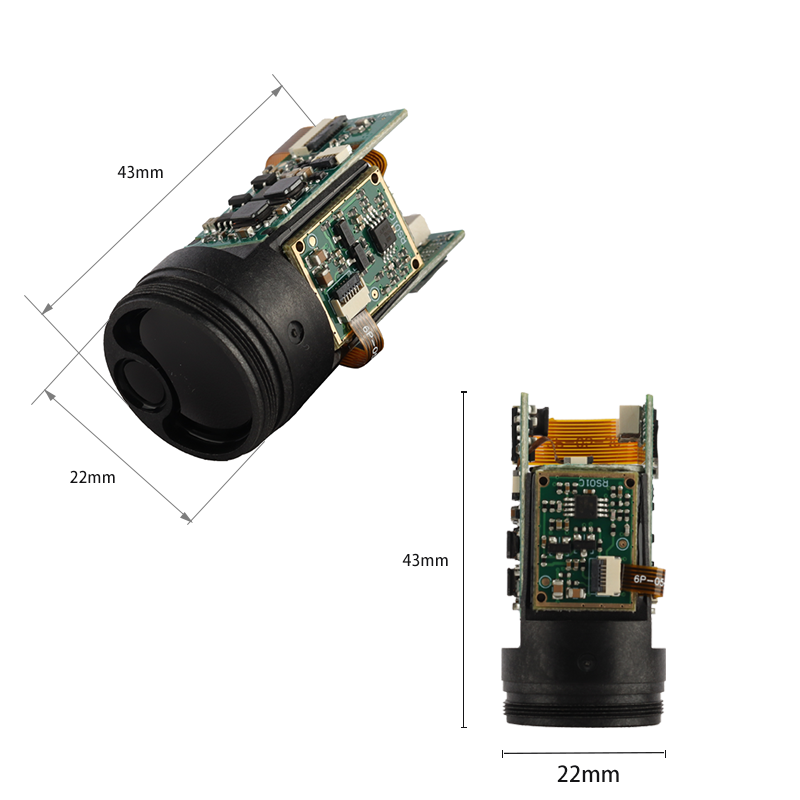

A pulse laser distance module, also known as a laser rangefinder module, is a device used to measure distances with high accuracy using laser technology. TC25-1500 is a classical ranging module mainly designed for UAV, night vision, Gunshot. Range 3-1500m Maximum Single Measurement Time About 1s Absolute Accuracy ±1m Frequency 100 Hz Resolution 0.1m Light 905 nm Voltage Typical value DC +3.3V, Operating Voltage(+2.5V~+3.5V) Current 100mA Power 330mW Operating temperature 0~50℃ Communication Interface TTL/RS232/RS485/Bluetooth Serial level TTL 3.3V Size 43*22mm We…
