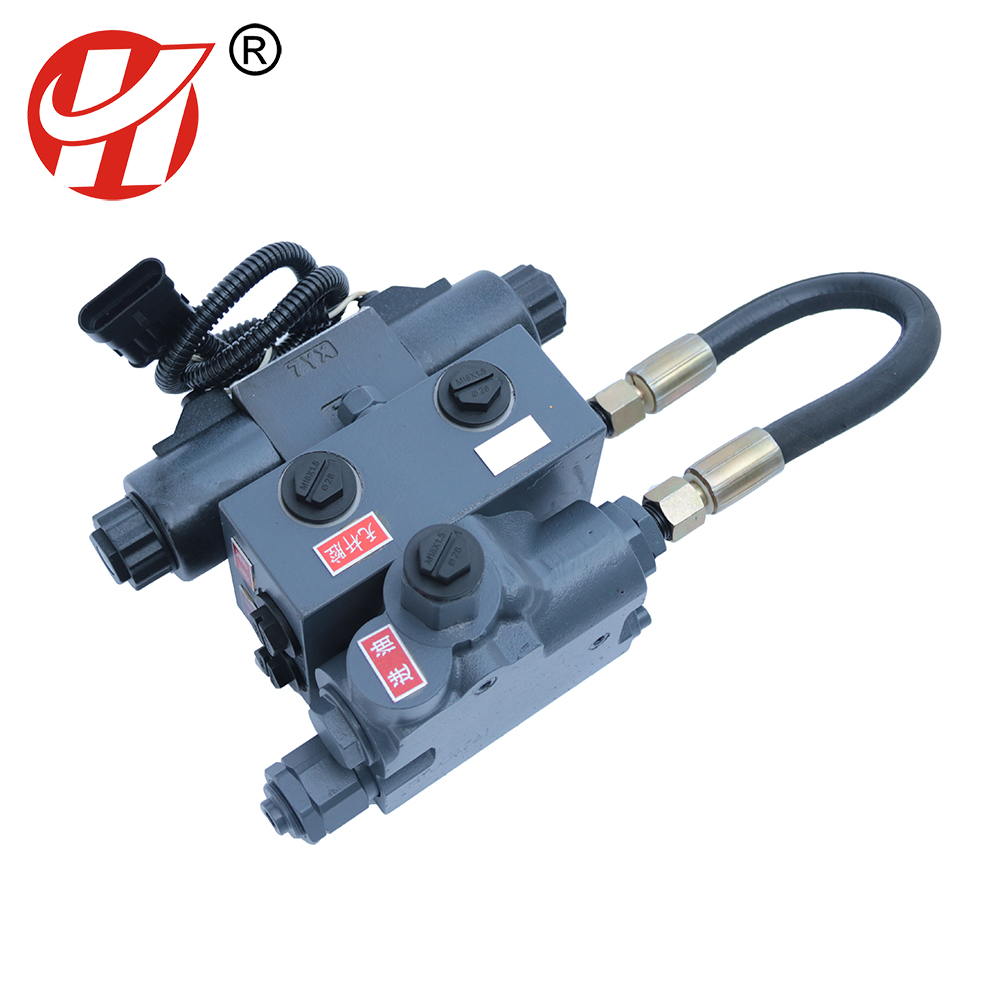

Njf010-00c barrel reel valve

36

Njf010-00c barrel reel valve

Njf010-00c barrel reel valve Njf010-00c barrel reel valve integrates safety valve, diverter valve, solenoid valve and other structures. It can be matched with njf009 series speed regulating valve and hydraulic motor to control the rotation of rice combine barrel and reel. It has the advantages of simple operation, convenient installation and high reliability. Technical parameter Rated pressure: 160 bar  Rated flow: 28L/min Solenoid valve voltage: DC24V/12V Power consumption: 28.8w Temperature range: - 20℃ ~ 100 ℃ Approximate weight: 9.8kg Oil cleanliness: the solid particle pollution level of oil and system shall not be higher than GB / T 14039-2002 - / 19 / 16 or NAS 1638 grade 10. Hydraulic system schematic Installation connection size
