Organic Chemical Powder Double Cone Vacuum Dryer

128
Website:

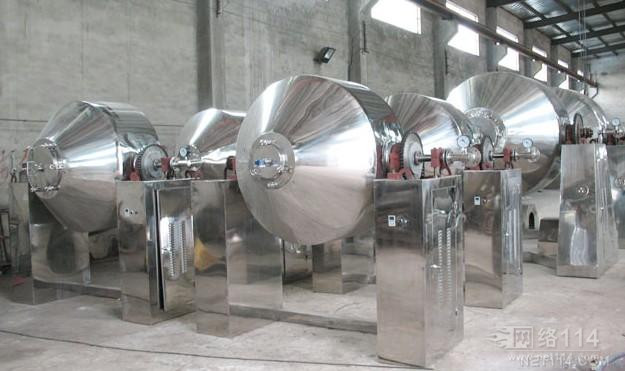

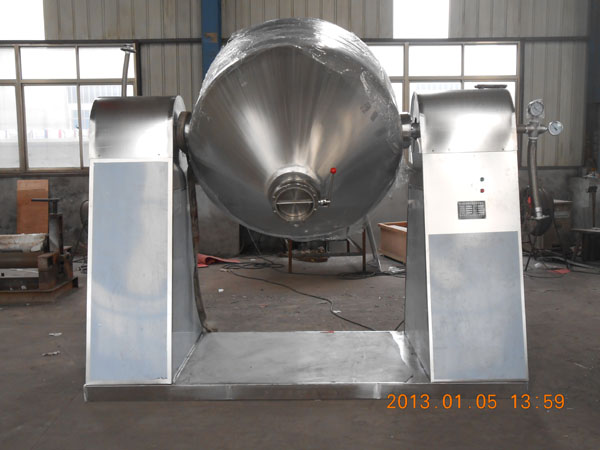

Organic Chemical Powder Double Cone Vacuum Dryer

Organic Chemical Powder Double Cone Vacuum Dryer Working Principle Raw material is charged in batches & is subjected to indirect heating while at the same time undergoing rotary motion of the cone assembly. The conical shape of the dryer ensures efficient circulation of hot liquid heating media. Drying takes place when heat flows from outer cone through a jacket, and vacuum is applied in the inner cone. The drying operation is based on the principle that water or other volatile product moves from a zone of low pressure. This is accomplished by warming the product to be dried to raise the vapour pressure of the zone of low pressure. This is accomplished by warming the product to be dried to raise the vapour pressure of the absorbed or free liquid, by vacuum, or by sweeping it away with an air current. Thus the essential conditions for effective drying are efficient and uniform heat transfer throughout the batch and rapid removal of the vapour. ◎Le…
